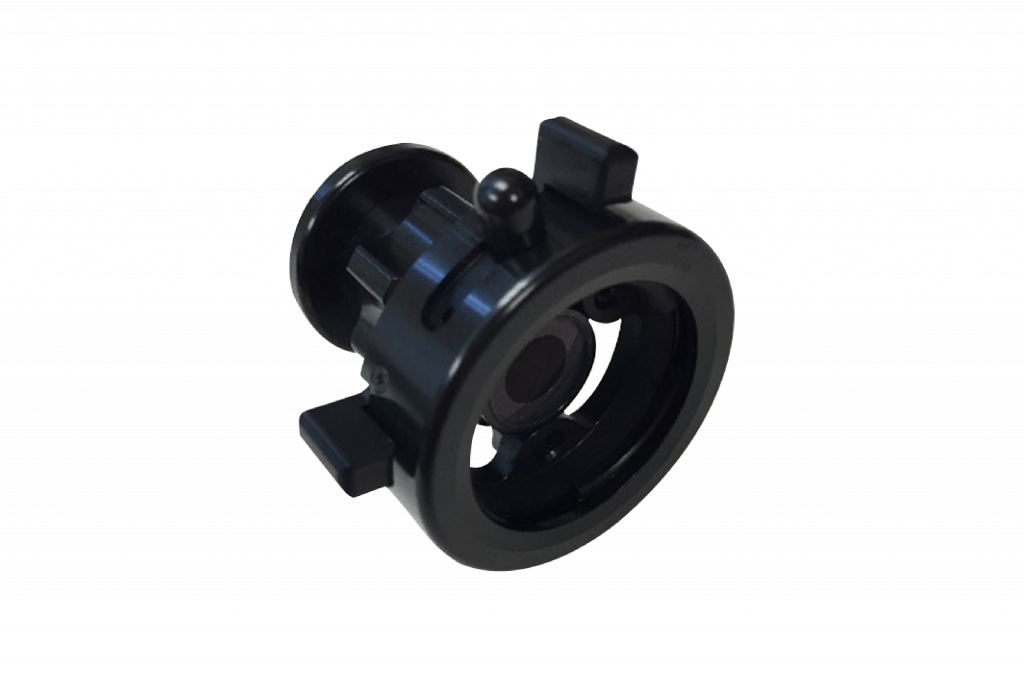

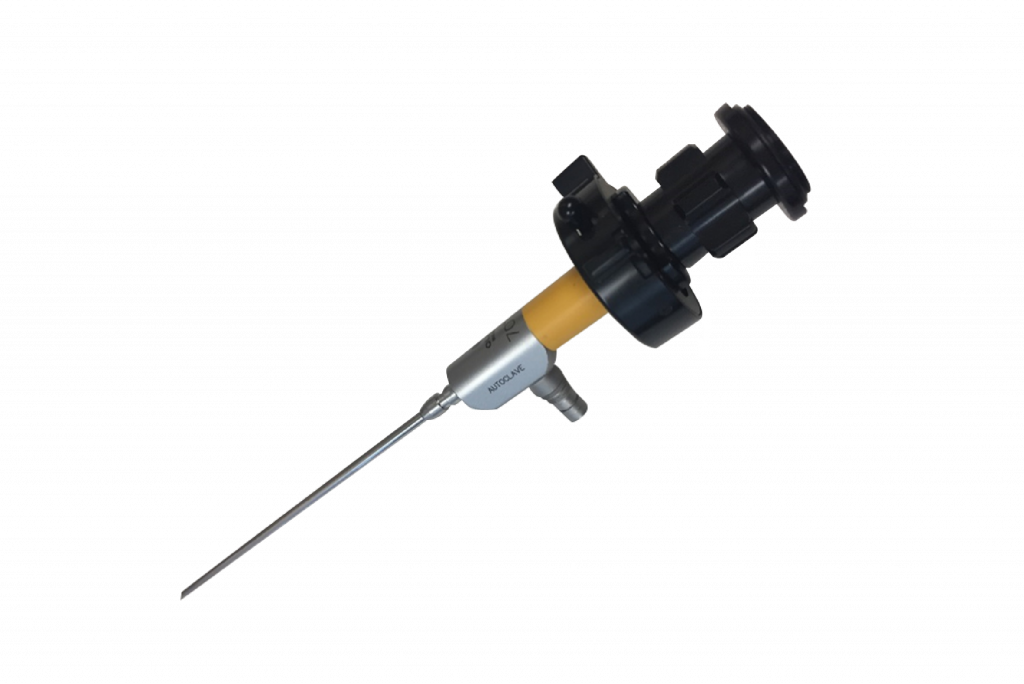

Accu-Beam® Fixed Focal Endoscope Couplers are a cost effective way to connect any C-mount or SLR camera to an endoscope without compromising on quality. They come in a variety of focal lengths to get the right magnification on any camera and can be sterilized.

  • Available in 17mm, 20mm, 24mm, and 35mm focal lengths
  • Focus-control to fine tune your image
  • Insulated
  • Sterilization validated
  • Leak tested
  • Eyepiece clamp will accommodate a standard 32mm eyepiece.
  • Compatible with C-mount or SLR cameras

Fixed Focal Couplers

Our Accu-Beam® Fixed Focal Couplers are a cost-effective way to connect any C-mount or SLR camera to any endoscope. They save you money and offer more camera flexibility by preventing you from having to buy a brand new camera to get endoscopic video.

Various lens options and built-in focus control ensure you get the best image on your camera. A quality, sterilizable design ensures the coupler will last as long as you need it.

Part # 8007I – 17mm Focal Length
Part # 8008I – 20mm Focal Length
Part # 8009I – 24mm Focal Length
Part # 8013I – 35mm Focal Length

Compatible with all C-mount video cameras.

Compatible with endoscopes using a standard 32mm eyepiece.

Fixed Focal Endoscope Couplers are approved to bear the CE mark.

TTI Medical is registered with the FDA and ISO 13485:2016 certified.

All of our products include a 1 year manufacturer’s warranty and support for the usable lifetime of the product.
